Name: Machines for Small Businesses Automatic Pulverized Coal Powder Burner
Brand: Machines for Small Businesses Automatic Pulverized Coal Powder Burner
SKU: Machines for Small Businesses Automatic Pulverized Coal Powder Burner
Rating: 4.9 (125 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: PGS

Product: Brick

Automation: Automatic

Condition: New

Processing: Brick Firing Machine

Method: Jet

Brick Raw Material: Clay

Exported: 5 Countries

Agent: Nepal, India, Bangladesh, Egypt, Venezuela

Function: Automatic Firing

Firing Tempereature: 900-1100

Firing Nozzle: 12 Nozzles Per Set

Input Coal Size: Less Than 5mm

Coal Moisture Content: Less Than 5%

Transport Package: Container

Specification: RTPCS

Trademark: BRICTEC

Origin: China

HS Code: 8416900000

Production Capacity: 50-300 Ton Per Day

Basic Infomation

Payment & Shipping Terms

Gallery

Machines for Small Businesses Automatic Pulverized Coal Powder Burner

Product Description

Pulverized Coal Burner

Product Description

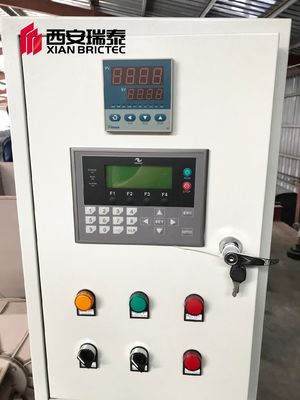

The burner is sprayed and automatically ignited, installed in the burning part of the kiln. The burner is controlled by the temperature regulator and thermocouple homogenization temperature and optimized combustion. Each burner contains: manual shut-off valve, large flame solenoid valve, small flame solenoid valve, cast aluminum burner head, secondary air low pressure safety switch and pressure gauge, burner gun with a set of special materials telescopic tube. The electronic control unit is equipped with complete flame control, temperature regulator, thermocouple. Each hole power 115kw.

Machines for Small Businesses Automatic Pulverized Coal Powder Burner

Number of coal feeding ponits	12
Power of screw conveyor	0.37 Kw
Single burner CV	57600 Kcal
Coal powder particle size	≤ 5 mm
Coal moisture content	≤ 5%
Coal consumption at each buner	5-12 Kg/h
Max. flow at single feeding point	180 m3/h
Blower and crushing power	4 Kw
Voltage	380v/415 v
Auxiliary power supply	24 v
Maximum working pressure	0,5 bar
Operating temperature	-10 to 50 ºC

Packaging & Shipping
Wooden-packing for spare parts of brick making production line, such as aguers, mixing paddles, air compressor is easy damage, it necessary packed in wooden box. Normally, we ship the goods by MAERSK, MSC, CMA-CGM etc. The big shipping company guarantee goods in safty.
Machines for Small Businesses Automatic Pulverized Coal Powder Burner

Company Information

Xi'an Brictec Engineering Co., Ltd. Majors in the abroad & home fired-brick designing, kiln designing, factory building designing and turn-
key project. We have many professional specialists, among which 6 are professor-level engineer and 10 are of high title. We cooperated with main brick machinery factories to supply you the most suitable machinery. We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South American is:countries. We have also successfully constructed over 20 production lines in China.
The business scope of our company
1. Turnkey project of brick plant
2. Design & Build Complete Modern Brick Plant
3. Consultancy Services for Brick Plant
4. Retrofit and Modernize of Existing Brick Plant
5. Supply Brick Making Machinery
6. Build Dryer & Kiln

Machines for Small Businesses Automatic Pulverized Coal Powder Burner

Our Services

We will provide project design and feasibility study, sourcing reliable and suitable machinery accord the design, do the kiln construction and supervision,

After construction we provide professional technician for project running and trail production, it means we provide one-stop service and whole responsibility,

If you take the service from many different companies, the Mutual shirk responsibility is happened in most of the failure brick factory
Q&A
1. What's the raw material for producing bricks?
Answer: Clay, mud, gangue, shale etc.

2. How much land area for building a new brick plant?
Answer: It need above 20, 000 square meters, the land area relate with capacity

3. When you need our proposal and quotation, what you have to mention in your inquiry.
Answer: Please provide daily capacity, the brick size and you want to build a new brick plant or brick making machingery only. So we can give the proposal and offer accordingly.

4. What's the Trade terms?
Answer: It can be EXW, FOB, CIF, CNF, FCA, CPT, CIP

5. How many countries exported this machinery.
Answer: Russia, Kazakhastan, Uzbekistan, Monglia, Iran, Iraq, Poland, Pakistan, India, Nepal, Bangladesh, Vietnam, Malaysia, Egypt, Argentina, SouthAfrica, Libya, Burundi, Uganda, Sudan, Venezuela, Colombia, Peru, Brazil, Center Africa, Mozambique, Bolivia, Turkmenistan, Romania

5. How many countries exported this machinery.
Answer: Russia, Kazakhastan, Uzbekistan, Monglia, Iran, Iraq, Poland, Pakistan, India, Nepal, Bangladesh, Vietnam, Malaysia, Egypt, Argentina, SouthAfrica, Libya, Burundi, Uganda, Sudan, Venezuela, Colombia, Peru, Brazil, Center Africa, Mozambique, Bolivia, Turkmenistan, Romania
